| ชื่อแบรนด์: | XWH |
| เลขรุ่น: | D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250 |
| ขั้นต่ำ: | 1 |
| ราคา: | USD38000-USD48000 |
| เงื่อนไขการจ่ายเงิน: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| ความสามารถในการจําหน่าย: | 50 sets/month |

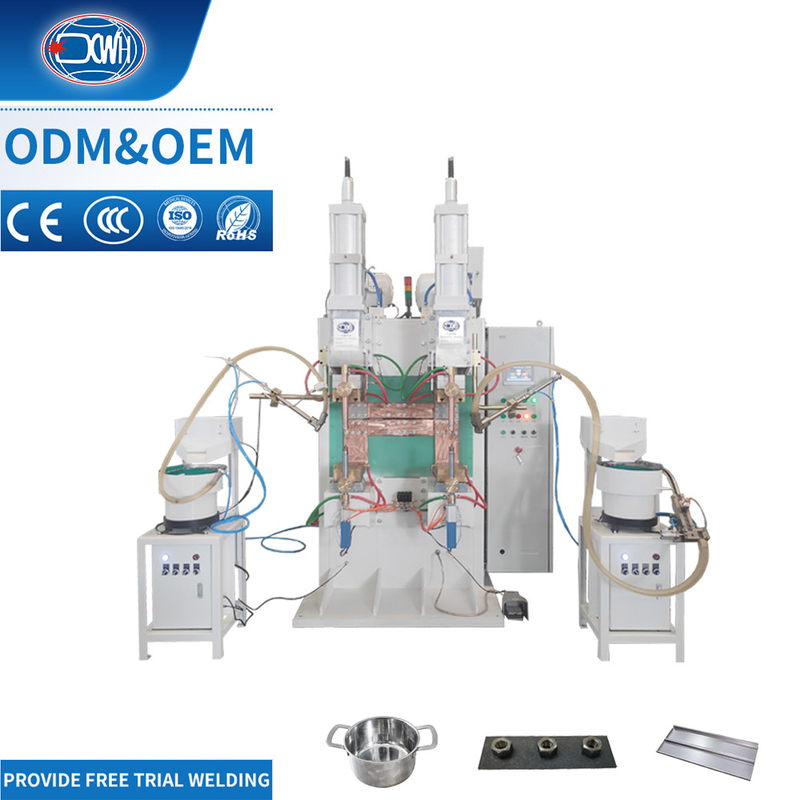

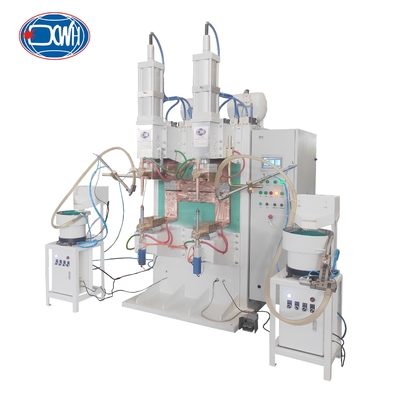

Resistance Two Heads Energy Storage Capacitor Discharge Welder Spot Welding
Product Introduction:
Energy storage spot welding machines are mainly used for welding non-ferrous metals such as copper, silver, nickel and other alloy materials, as well as welding between dissimilar metals, in addition to welding ordinary black metal steel, iron and stainless steel. Widely used in industrial production and manufacturing fields, such as construction, automobiles, hardware, furniture, household appliances, kitchenware, metal vessels, motorcycle parts, electroplating industry, toys, lighting, microelectronics, glasses and other industries.
Energy storage projection welding machine is still a high-strength and reliable welding method for high-strength steel, hot formed steel spot welding, and nut convex welding in the automotive manufacturing industry.
Features:
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Detailed Images:
The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points. Adopting double-layer cylinder pressurization, welding pressure is sufficient and stable.
Dual Cylinders:The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Dual Gas Storage Tanks:Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.
Equipped With Two Nut Conveyors: Equipped with two nut conveyors, it has increased the time for nut loading and unloading, greatly reducing labor and time costs, and improving work efficiency.
Scene Images:
Welding Test:
Application:
FAQ:
